Utilizing Inline Motion Vector Estimates from an H.264 Encoder to Implement Motion Detection
or Motion Detection Made Easy
Press Down to continue, or Swipe Up if you prefer.
A Brief Introduction to Video Encoding
- Video is just lots of images
- Simple encoders just encode lots of images (MJPEG):
JPEG JPEG JPEG JPEG JPEG JPEG JPEG JPEG - Complex encoders exploit similarity of images (MPEG):
I-Frame P-Frame B-Frame B-Frame P-Frame B-Frame
MPEG I-Frames
Simplest frame type: it's just a picture. Also known as a key
frame
MPEG P-Frames
Stores what changed since the last frame. Useful!
MPEG B-Frames
Like P-Frames, but with time travel.
Motion Estimation
Every frame, GPU calculates which macro blocks moved where.
Limitations
- Very crude estimate
- Doesn't try and identify features
- Based solely on similarity of blocks
- 2D vector only, doesn't attempt to infer rotation, Z-motion, etc.

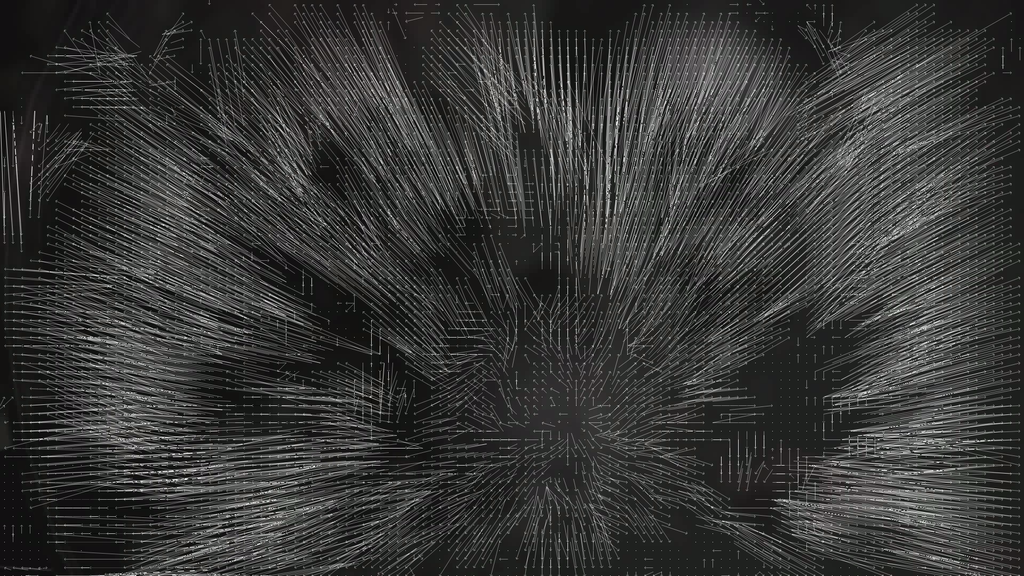

Interpretation
What on earth is this?!
The Data!
For each frame, Pi's camera produces a stream of inline motion data. Consists of X, Y, and SAD values for each macro-block:
The Code!
The Code!
The picamera library does most of the tedious stuff (since 1.5)…
How to detect motion
Crude first steps...
Refinements
How about a histogram of magnitudes?
Future Work
Left as an exercise for the reader...
- Use SAD values to filter
good
blocks - Define features in motion (convex
hull? feature
labelling?)
- to ignore lighting effects
- ... and cats
- Combine with image data (e.g. ignore certain colours?)
Thank You!
The picamera library: picamera.readthedocs.org
The author: dave@waveform.org.uk
The Twitter feed: @waveform80
